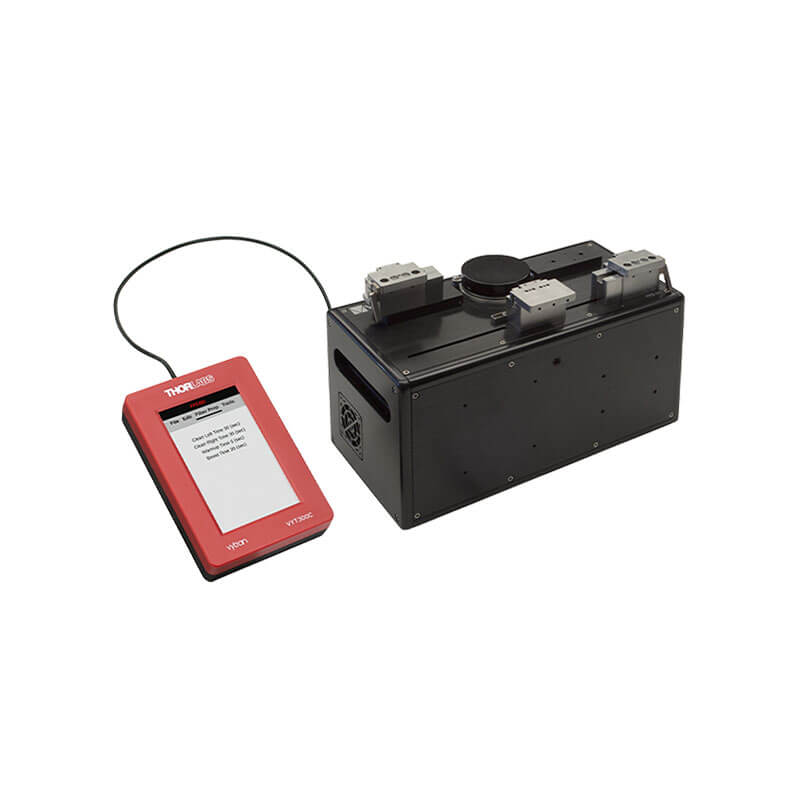

Fiber Stripping and Cleaning Station


Fiber Stripping and Cleaning Station

Strip and Clean Fiber Prior to Cleaving and Splicing
Accepts Fibers with Cladding Diameters from 80 to 400 µm
Designed for Use with the LDC401 Series of Fiber Cleavers, LFS4100 Splicer, and GPX Series of Glass Fiber Processors


Compatible with Fibers with Cladding Diameters from 80 to 400 µm
Thermo-Mechanical Stripper with Adjustable Heating Time
End Strip up to 1.4" (35.6 mm) of Single or Dual Acrylate Coated Fiber

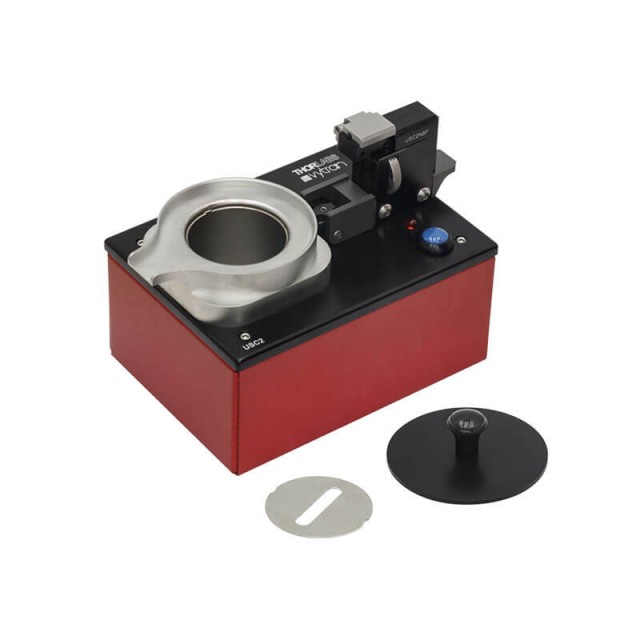

Ultrasonic Cleaning Bath for Removing Particulates from Stripped Fiber
Cleaning Bath Accepts User-Supplied Acetone or Isopropyl Alcohol Includes Handset Controller and Vacuum Pump
Fiber Holding Blocks and Fiber Holder Inserts Shared with Other Vytran® Systems for Ease of Transfer Between Processes:
  • LDC401 Series of Cleavers
  • LFS4100 Fiber Splicer
  • GPX3400 and GPX3600 Automated Glass Processors
  • GPX3800 Series of Automated Glass Processors with Integrated Cleaver
  • GPX4000LZ CO2 Laser Glass Processor
Includes Handset Controller and Vacuum Pump


Accepted Fiber Buffer Diameters Up to 600 μm
Accepted Fiber Cladding Diameters 80 to 400 µm(a)
Accepted Fiber Types SM, PM, MM, Specialty Fibers Including Photonic Crystal Fiber (PCF)
and Non-Circular Fiber, and Capillary Tubes
Thermo-Mechanical Stripper
Accepted Coating Materials Single or Dual Acrylate
Maximum Stripping Temperature ~130 °F (54 °C)
Ultrasonic Cleaner
Accepted Cleaning Solvents Acetone or Isopropyl Alcohol
Cleaning Times 1 to 120 s
Operating Temperature 0°C to 40 °C (Non-Condensing)
Storage Temperature -20°C to 70 °C
Power 90 to 250 VAC (47 to 63 Hz)
Size (L x W x H) 10.14" x 5.39" x 6.76"
(257 mm x 137 mm x 172 mm)
Weight 8.8 lbs (4 kg)

(a) Set by the TMS blade sets, which must be purchased separately. Please contact us.
