SprayMaster
Spray Imaging and Quality Control
LaVision’s SprayMaster imaging systems provide information on all relevant spray parameters in even the most complex spray application: complete geometrical spray characterization, liquid (vapor) mass and global droplet size distributions on laser light sheets, multiphase flow fields, mass flux, spray evaporation and propagation.
Global spray imaging using extended backlight or light sheet illumination is supported as well as high resolution imaging of µm-droplets.
SprayMaster systems are easy to operate, fast and efficient measurement tools suitable for R&D as well as quality control applications.
Application matrix for SprayMaster imaging systems
| Spray Parameter | Spray Imaging Techniqu(s) | lllumination | Product (Application) |
|---|---|---|---|

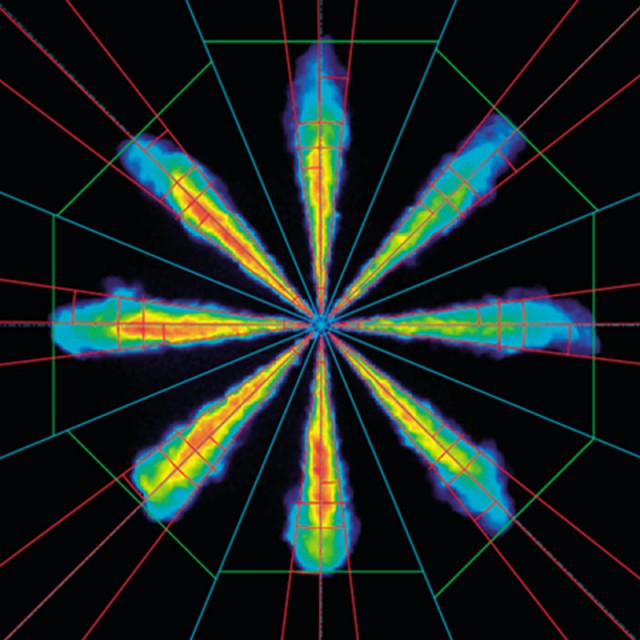

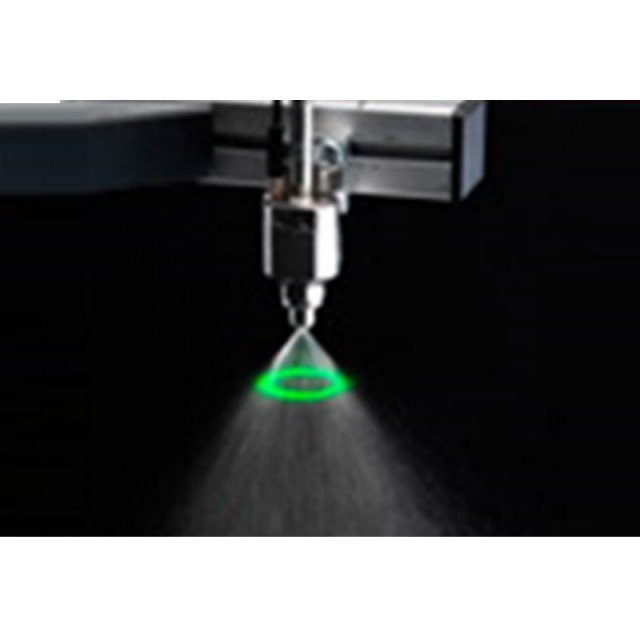

| Geometry Shape Patternation |
Mie Shadowgraphy Mie |
Global-Illumination Back-Illumination Light Sheet |

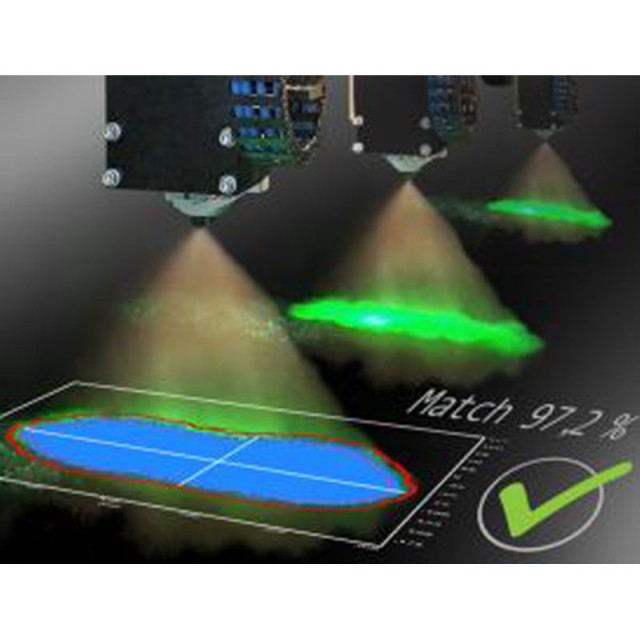

SprayMaster inspex (Quality Control) |
| Mass Distribution Planar Droplet Sizing Phase Separation |
LIF LIF/Mie LIEF |
Laser Sheet | SprayMaster (R&D) |
| Flow Fields MassFlux |
PIV LIF*PIV |
Laser Sheet | FlowMaster SprayMasrer Flux |

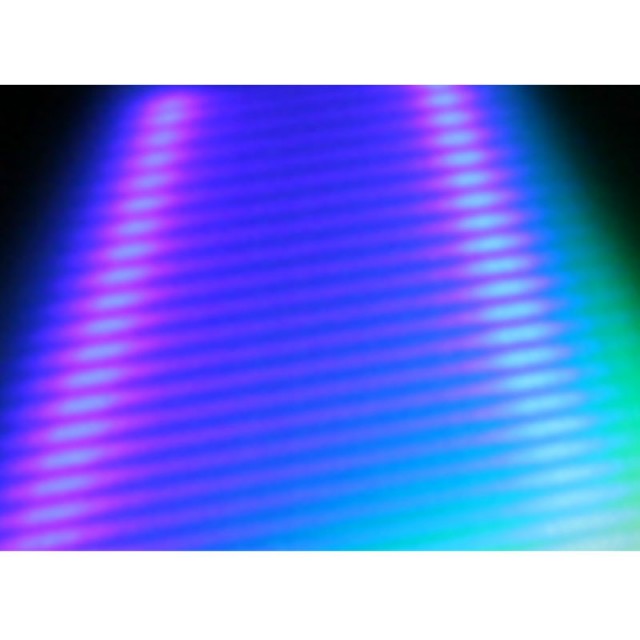

| Dense spary Imaging | SLIPI | Structured Laser Sheet |
SprayMaster SLIPI |
| Local Droplet Sizing | Shadowgraphy IMI |
Back-Illumination Laser Sheet |
ParticleMaster |
