FlameMaster

(Laser) Imaging in Flames

LaVision‘s FlameMaster system family is designed to find new concepts for the realization of more efficient and cleaner combustion devices. These (laser) imaging systems are designed for multi-parameter measurements in all kind of flames with high spatial and temporal resolution.

Our FlameMaster imaging systems support online flame monitoring in industrial devices and provide quantitative information about species (particle) concentration, gas composition and flame temperature in laser illuminated flame areas. For each imaged combustion parameter a dedicated set of hardware and software modules is provided offering the possibility for straightforward system upgrades. This modular nature for imaging upgrades provides full flexibility for different flame imaging applications.

FlameMaster Application Matrix

FlameMaster Application Matrix		(Laser) Imaging System

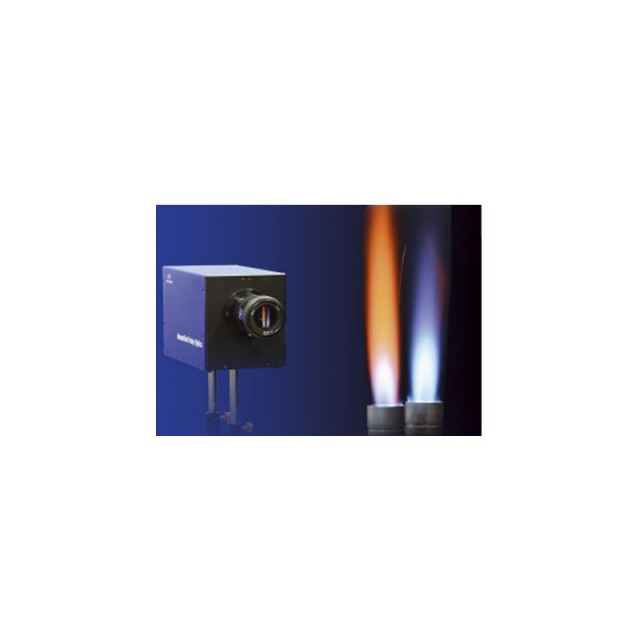

Flame Monitoring	Flame Emission, Pyrometry	FlameMaster inspex

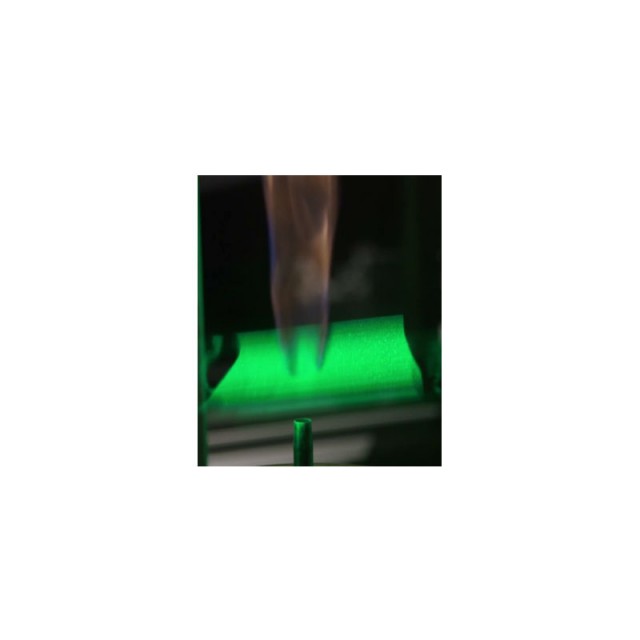

OH Flame Radical	OH-LIF with T-YAG	FlameMaster Multifunctional
Fuel Imaging Mixture Preparation	Tracer (Fuel) LIF
Formaldehyde, HCOH	Formaldehyde LIF
Flame Temperature	Rayleigh Thermometry
Soot Concentration Particle Size	Laser Induced Incandescence LII
Gas Composition Flame Temperature	Raman Imaging	FlameMaster Raman
Flame Species & Radicals: OH, NO, CH, CN, CO....	Tunable LIF	FlameMaster Tunable-LIF

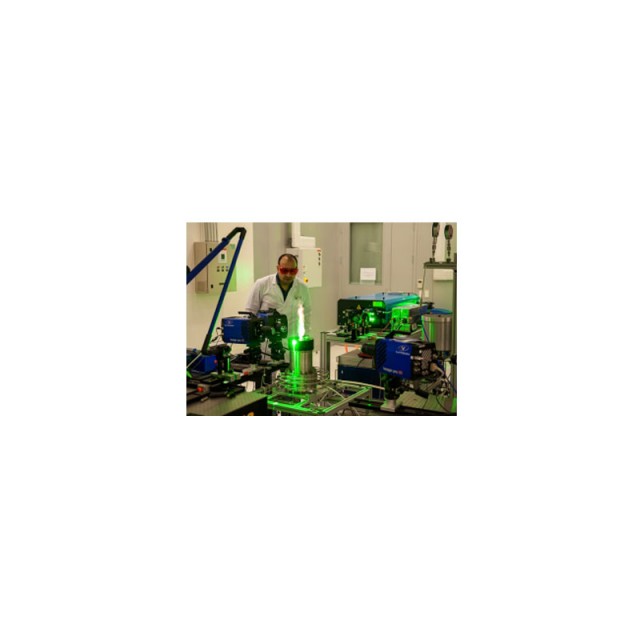

Time-resolved Flame Imaging	High-Speed (Laser) Imaging	FlowMaster High-Speed

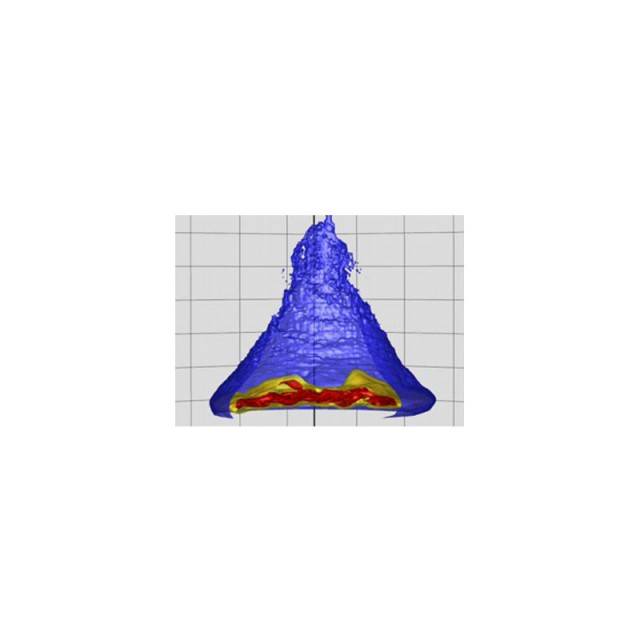

3D-Flame Imaging	Tomographic Flame Imaging	FlameMaster 3D

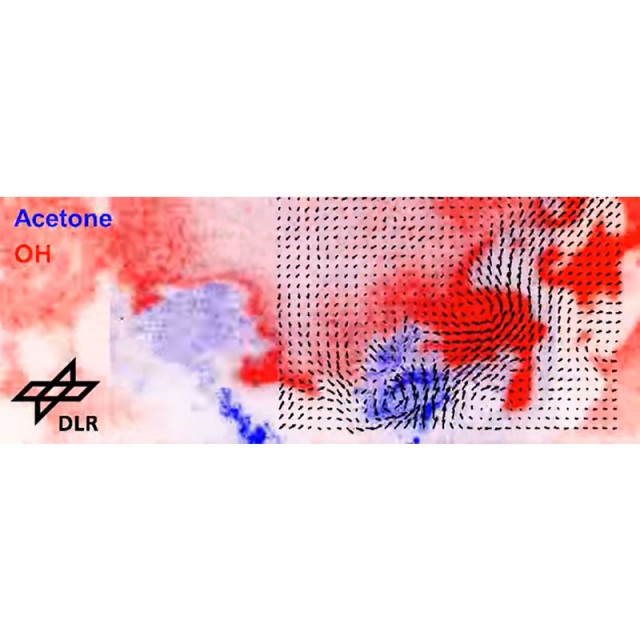

Flow Field Imaging in Flames	PIV	FlowMaster
