Features

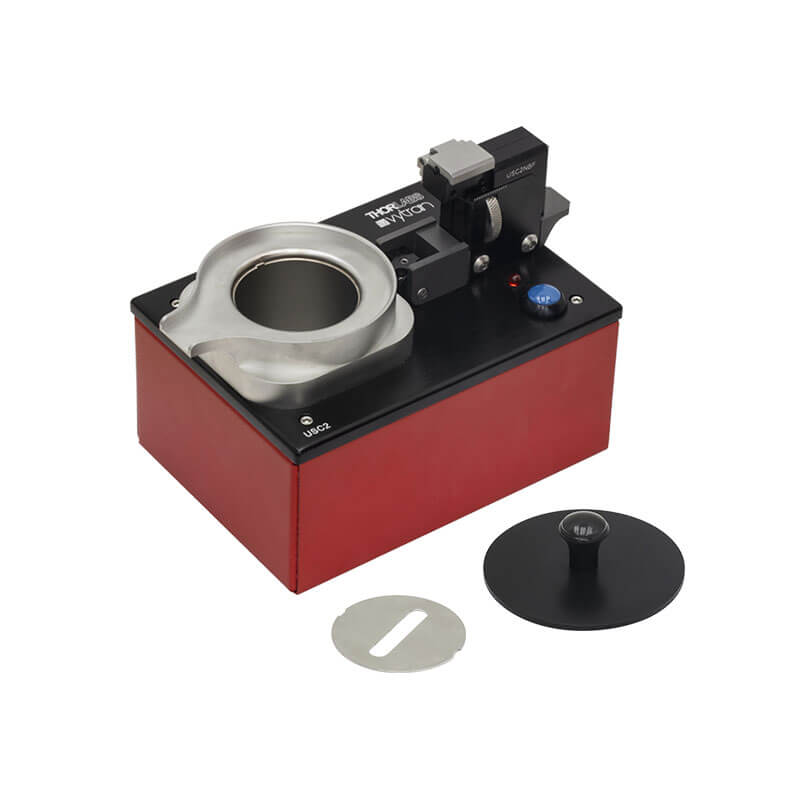

Ultrasonic Cleaner with Nest for Ø125 - Ø600 µm Bare Fiber
Includes Slotted Vapor Shield, Lid, and Power Supply with Location-Specific Cord
Interchangeable Fiber Holder Nests Sold Separately Below
Compatible with Isopropyl Alcohol
Specifications
| Ultrasonic Cleaner for Bare Fiber | |
|---|---|
| Tank Capacity | 100 mL |
| Tank Dimensions | Ø1.7" x 2.8" Deep (Ø43 mm x 71 mm Deep) |
| Peak Output Frequency | 75.2 - 76.4 kHz |
| Maximum Power Delivered to the Transducer | 6 W |
| Operating Power | 36 W |
| Operating Current | 1.5 A |
| Input Voltage | 100 - 240 VAC @ 47 - 63 Hz |
| Outside Dimensions (With Included Bare Fiber Nest) | 6.95" x 4.78" x 4.13" (176.5 mm x 121.5 mm x 104.8 mm) |
| Mass | 2.82 lbs (1.28 kg) |
