Features
Accepts Fiber with Cladding Diameters from 80 µm to 400 µm
Strip Polyimide Coatings with Diameters 100 µm - 250 µm, 400 µm, or 500 µm
Mechanical Blade with a Lifetime of 100 - 200 Strips
Manual Rotation with 20 Detent Positions at 18° Apart
Includes Top Inserts and Rear Guides
Includes Tools for Installing Bottom Inserts and Front Guides
Requires a Fiber Holder Insert Set (Sold Separately Below)
Specifications

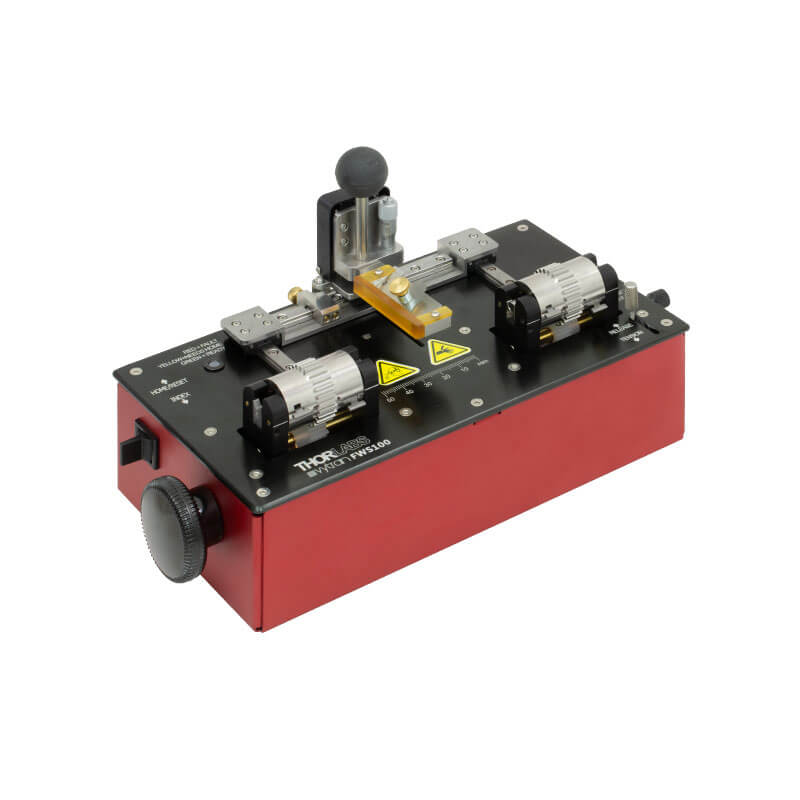

| FWS100 Window Stripper | |
|---|---|
| Accepted Fiber Material | Silica |
| Accepted Coating Material | Polyimide |
| Accepted Cladding Diameters | 80 μm - 400μm |
| Accepted Coating Diameters | 100 μm - 250 μm, 400 μm, 500 μm (a) |
| Strip Length | 1 mm - 50 mm |
| Strip Method | Multiple Pass with Manual Rotation |
| Strip Blade | Single-Edge Precision Blade with Power Assist Advance |
| Blade Lifetime | 100 - 200 Strips per Blade |
| Fiber Rotation | Manual Rotation with 20 Detent Positions at 18° Apart |
| Electrical Power | 12 VDC Input; 100 - 240 VAC AC Adapter Included |
| Dimensions (L x W x H) | 10.78" x 5.06" x 6.19" (273.7 mm x 128.5 mm x 157.3 mm) |
| Weight | 2.2 kg |
| Operating Conditions | 0°C to 40°C 0% - 85% RH (Non-Condensing) |
| Storage Conditions | -40°C to 80°C 0% - 95% RH (Non-Condensing) |
(a) Be sure to purchase the appropriate insert set for the desired coating diameter: VHW250 accepts Ø100 µm to Ø250 µm fiber; VHW400 accepts Ø400 µm fiber; VHW500 accepts Ø500 µm fiber.
