Features
Compatible with Mold Assemblies for Coating Diameters of 280 µm, 430 µm, or 600 µm
50 mm or 100 mm Maximum Recoat Length
Compatible with High- and Low-Index Recoat Material
Ideal for Low-Volume Manufacturing and R&D
Specifications

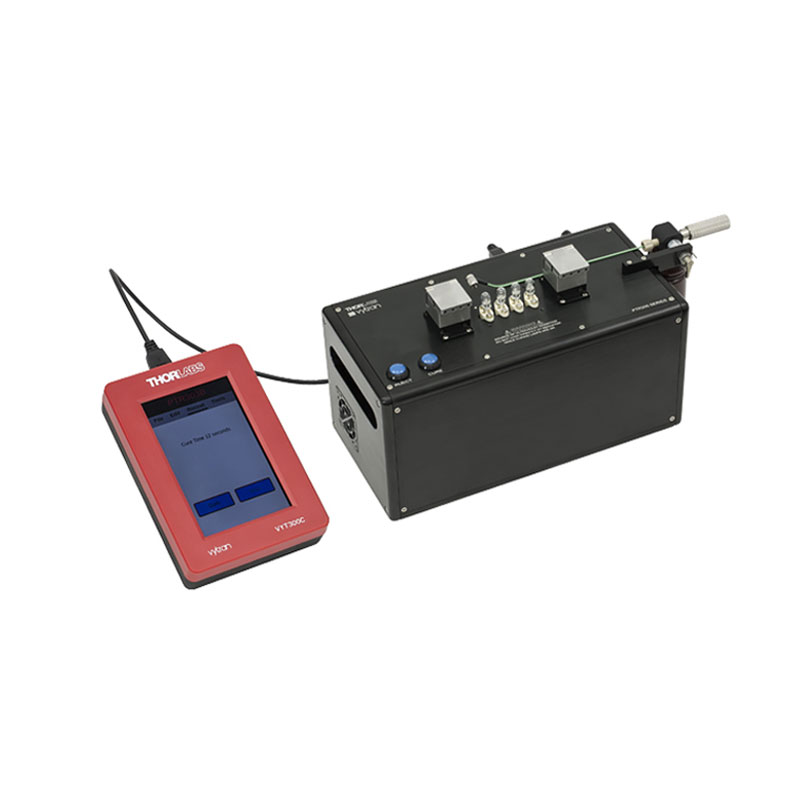

| Fiber Recoaters with UV Curing LEDs | PTR303B |
|---|---|
| Recoater Type | Manual |
| Recoater Mold | Hinged Split Quartz Plates |
| Recoat Diameter (a) | 280 µm, 430 µm, or 600 µm (b) |
| Maximum Recoat Length | 50 mm |
| Recoat Material | High- or Low-Index UV Curable Acrylate |
| UV/Thermal Source | Four 10 W Halogen Lamps |
| Recoat Injection | Manual |
| Recoat Volume | Manual |
| Recoat Injection Rate | Manual |
| Lamp Delay Time (c) | 5 s (Typical) |
| Cure Time (c) | 17 s (Typical) |
| Mold Cleaning Requirement (d) | After Every Recoat |
| Total Cycle Time | 60 s (Typical) |
| Dimensions (L x W x H) | 10.14" × 5.30" × 6.88" (257.4 mm × 134.6 mm × 174.8 mm) |
| AC Power | 110 - 120 V / 200 - 240 V, 47-63 Hz |
| Controller Type | Handset |
(a) Custom sizes available.
(b) Depends on the Mold Assembly.
(c) Programmable with the Controller; Mold Size and Recoat Material Dependent.
(d) The mold should be cleaned with either acetone or isopropyl alcohol, applied with a cotton swab. If the mold has an accumulation of cured material stuck on the plates, allow the cleaning solution (preferably acetone) about 60 - 90 seconds to soften and lift the material from the surface.
