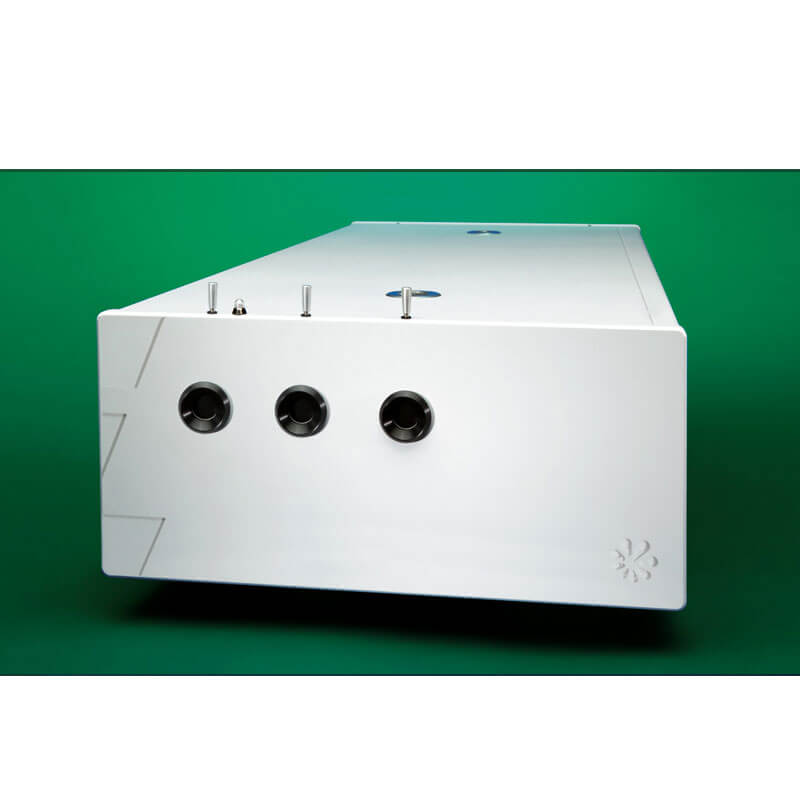

PhotoSonus T

PhotoSonus T

High Energy Table-Top Tunable Wavelength Lasers for Photoacoustic Imaging

Integrated OPO system
Automated wavelength tuning from 330 to 2600 nm
Up to 230 mJ in range 660 – 2600 nm
3 – 5 ns pulse duration


Hands-free, automated wavelength tuning from 330 to 2600 nm
Ultra-wide OPO signal tuning range from 660 to 1320 nm
Up to 230 mJ in range 660 – 2600 nm, 35 mJ in range 330 – 660 nm
Narrow linewidth across tuning range
Remote control via key pad or PC
Separate output port for 532 nm beam. Output for 1064 nm is optional
OPO pump energy monitoring
Fast Wavelength Switching within entire Signal or Idler ranges


High pulse energy (up to 230 mJ) is highly beneficial for photoacoustics imaging applications
Superior tuning resolution (1 – 2 cm⁻¹) allows recording of high quality spectra
High integration level saves valuable space in the laboratory
Flashlamps replacement without misalignment of the laser cavity saves on maintenance costs
In-house design and manufacturing of complete systems, including pump lasers, guarantees on-time warranty and post warranty services and spares supply
Variety of control interfaces: USB, RS232, optional LAN and WLAN ensures easy control and integration with other equipment
Attenuator and fiber bundle coupling options facilitate incorporation of PhotoSonus T systems into various experimental environments


Photoacoustic imaging
Flash photolysis
Remote sensing
