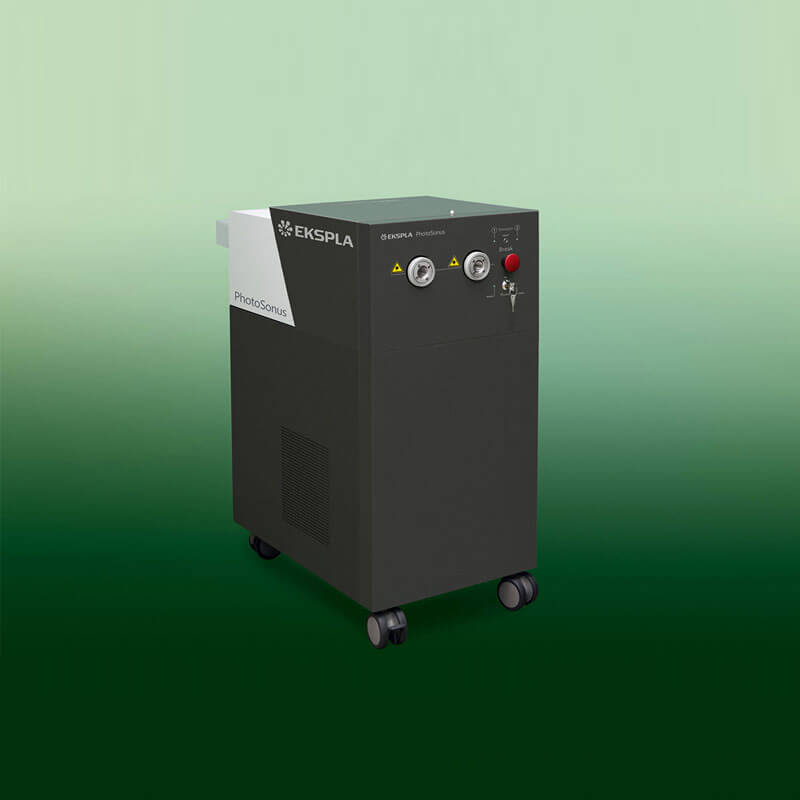

PhotoSonus M

PhotoSonus M

High Energy, Mobile, Tunable Wavelength Laser Source for Photoacoustic Imaging

Pump laser, OPO and PSU in a single mobile unit
High 250 mJ output energy
Wide tuning range from 330 to 2300 nm
Fast wavelength tuning available

Features

High up to 250 mJ output energy
Wide tuning range from 330 to 2300 nm
Ultra-wide OPO signal tuning range from 660 to 1320 nm
10 Hz or 20 Hz pulse repetition rate
Integrated pump laser, OPO and PSU in single mobile unit
Low maintenance cost
Fiber bundle connectors with safety interlock
Fast Wavelength Switching within entire Signal or Idler range between two consecutive pulses
Integrated energy meter (optional)
Motorized attenuator (optional)
Access to pump laser wavelengths 1064/532 nm (optional)
Signal and Idler through the same output (optional)
