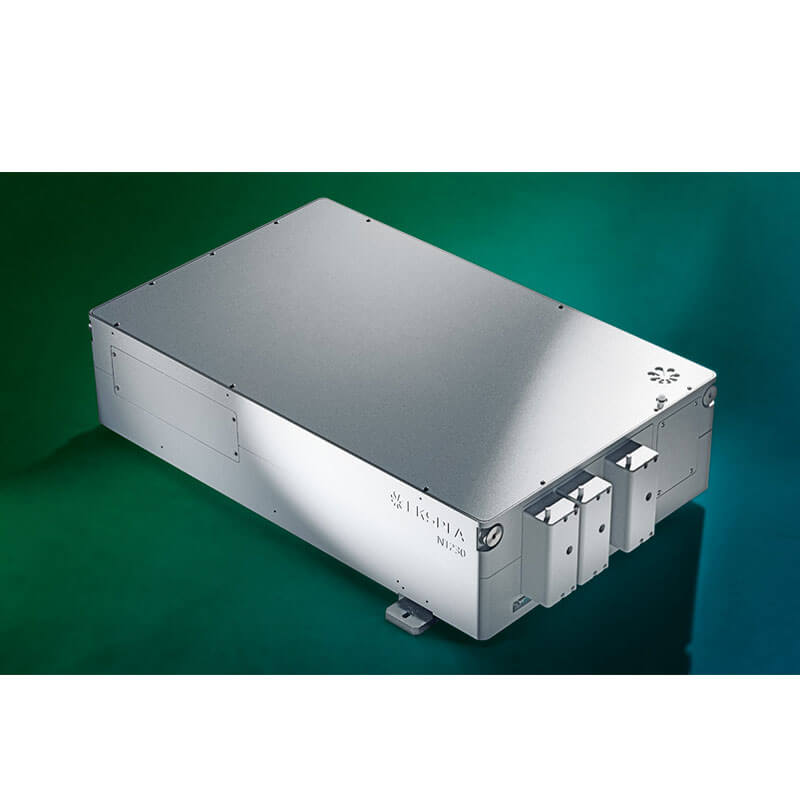

NT230 Series

High Energy Broadly Tunable DPSS Lasers

Integrated OPO system
Diode pumped
Ultrabroad tuning range from 192 to 2600 nm
Up to 15 mJ in VIS, more than 1.8 mJ in UV
At 100 Hz pulse repetition rate


Integrates DPSS pump laser and OPO into a single housing
Hands-free no-gap wavelength tuning from 192 to 2600 nm
High, up to 15 mJ pulse energy from OPO
100 Hz pulse repetition rate
More than 1.8 mJ output pulse energy in UV
Less than 5 cm-1 linewidth
2 – 5 ns pulse duration
Electromechanical output shutters
Integrated energy meter
Transportation handles
355 nm & 1064 nm laser outputs
Remote control via key pad or PC
Optional separate output port for 532/1064 nm beam


The system is widely tunable; 192 – 2600 nm and delivers high pulse energy (up to 15 mJ) which allows investigation of an extensive range of materials/h5>
High repetition rate (up to 100 Hz) and output power enable fast data collection and intensive excitation of materials
Narrow linewidth (down to 3 cm⁻¹) and superior tuning resolution (1 – 2 cm⁻¹) allow recording of high quality spectra
High integration level saves valuable space in the laboratory
Diode pumping reduces maintenance frequency
Auto-calibration makes easy operation and maintenance
Integrated energy meter verifies energy data readings
Automatic electromechanical output shutters ensure high level of safety
User friendly extendable handles ease transportation and repositioning of laser
In-house design and manufacturing of complete systems, including pump lasers, guarantees on-time warranty and post warranty services and spares supply
Variety of control interfaces: USB, RS232, LAN and WLAN ensures easy control and integration with other equipment
Attenuator and fiber coupling options facilitate incorporation of NT230 systems into various experimental environments


Laser-induced fluorescence
Flash photolysis
Remote sensing
Non-linear spectroscopy
