Features
Dual color output 520 nm & 1040 nm
Arbitrary splitting ratios possible
Compact Laser Head
Short femtosecond pulses < 150 fs
Reliable operation due to figure 9® mode locking and all-PM solution
Applications
2-Photon polymerization and 3D printing
Ultrafast Spectroscopy
Multi-Photon Exitation
Specifications

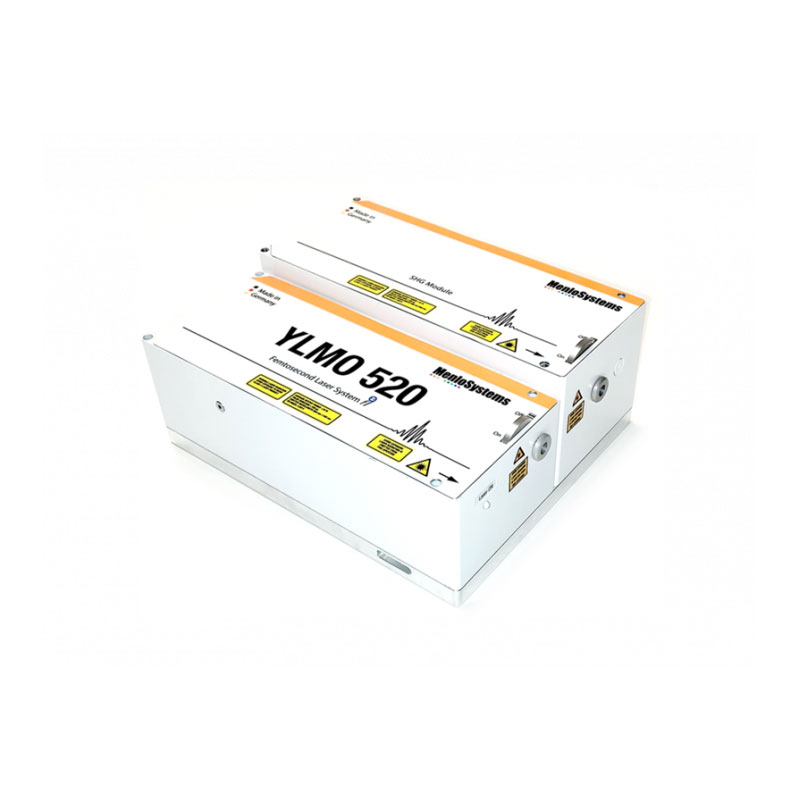

| Item | YLMO 520 |
|---|---|
| Central Wavelength | 520 nm ±5 nm |
| Pulse Width (FWHM) | < 150 fs (Gaussian) |
| Average Power * | > 500 mW (higher output power on request) |
| Pulse Energy | > 5 nJ |
| Repetition Rate * | 100 MHz |
| Output Port | free space |
| Polarization | linear, s-polarized |
| Beam Divergence | < 2 mrad |
| Beam Quality | M² < 1.2 (typ. < 1.1) |
| Auxilary Output Port ** | Free space, > 4 W average power, 1040 nm, < 100 fs |
* Please inquire for your specific combinations of average output power, pulse duration, repetition rate.
** User can switch between 520 nm and 1040 nm port (arbitrary splitting ratios possible).
