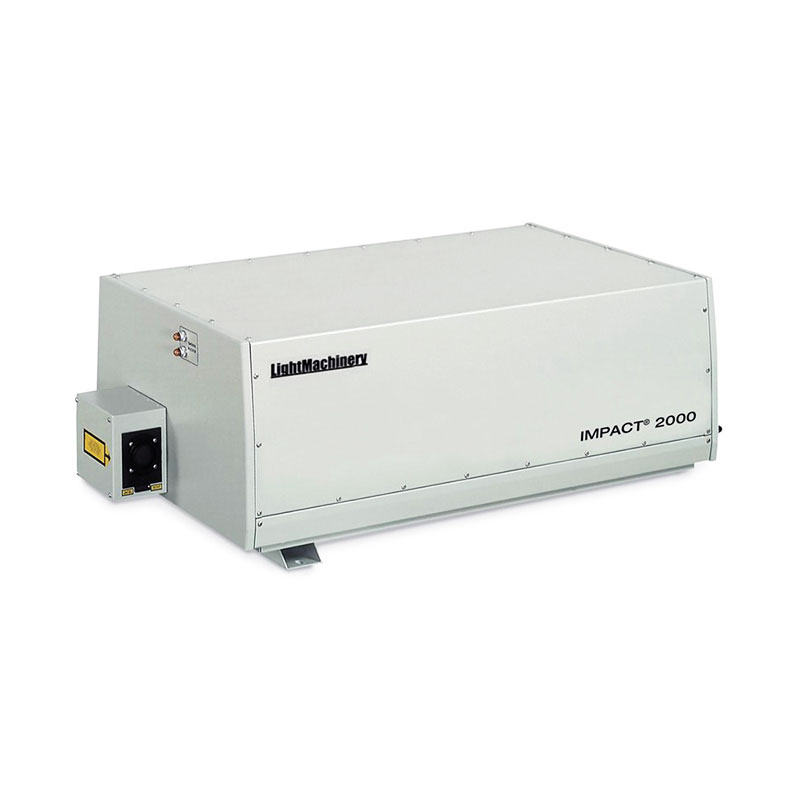

IMPACT-2000 Series
The Impact-2000 Series lasers are ideally suited for the selective removal or machining of non-metallic layers deposited on a metallic under-layer. Unlike conventional CO2 lasers, the short pulses and high peak powers of TEA CO2 lasers enable the surface layer to be removed (“ablated”) with little or no effect on the underlying metal substrate, and with minimal thermal damage (“heat-affectedzone” or “HAZ”) to the surrounding polymer material.
Features
Megawatt peak powers give excellent edfge definition in non-metallic materials
Greatly reduced heat affeccted zone (HAZ) compared to conventional C)2 lasers
High reliability SSM switch technology
Internal real time gas filtering systems
High up times and low maintenance even at continuous 75W power delivery 24/7
Operation at 10.6 or 9.3um
A variety of pulse energy and rep rate models
Benefits
A cost effective alternative to excimer lasers in many processes
Simple to operate
Low cost of ownership
LightMachinery's legendary customer support
Applications
Drilling, patterning and ablation of non-metallic materials
Selective removal of polymer materials from a metal substrate with no damage to the metallic backing
Wire stripping
Medical device components
Drilling of controlled-release and rapid-release pharmaceutical tablets and capsules
Microvia-hole drilling in printed circuits
Flex-circuit processing
Laser ultrasound non-destructive testing
Specifications
| Model Number | 2012 | 2015 | 2030 | 2150 | 2500 |
|---|---|---|---|---|---|
| Pulse Energy (J) | 5 | 4 | 2 | 0.4 | 0.15 |
| Max. Average Power (W) | 60 | 60 | 60 | 60 | 75 |
| Max. Repetition Rate (Hz) | 12 | 15 | 30 | 150 | 500 |
| Beam Size (H x V, mm) at laser | 25x25 | 25x25 | 12x16 | 11x14 | 8x9 |
Specifications apply to operation at both 10.6um and 9.3um wavelengths
