ParticleMaster inspex online

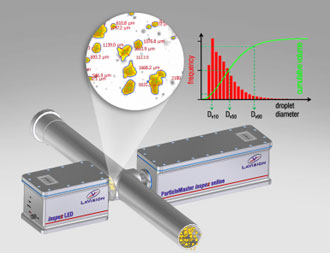

LaVision’s ParticleMaster inspex online probes are specifically designed for particle and droplet characterization in industrial processes such as 24/7 online and inline production monitoring. Sizing parameters as well as particle statistics are communicated to the production environment continuously or on-demand. Common communication protocols enable easy integration to the production line.
Features
In-situ particle imaging: size, shape and velocity
Detects particles and droplets in liquid and gaseous flows
Rugged IP67 design
Fully automated 24/7 operation
Machine control via common protocols (e.g. Modbus)
Particle sizing down to 4 µm
The ParticleMaster inspex online is factory calibrated and IP67 sealed for use in harsh environments. It features reliable in-field operation and easy maintenance. Optionally a hygienic housing for food industry applications is available. A number of probe configurations allow particle sizing down to 4 µm.

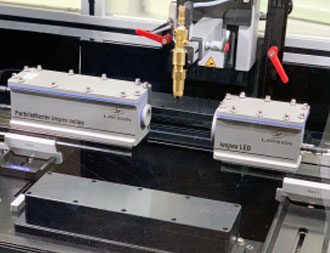

Droplet monitoring for spray quality control

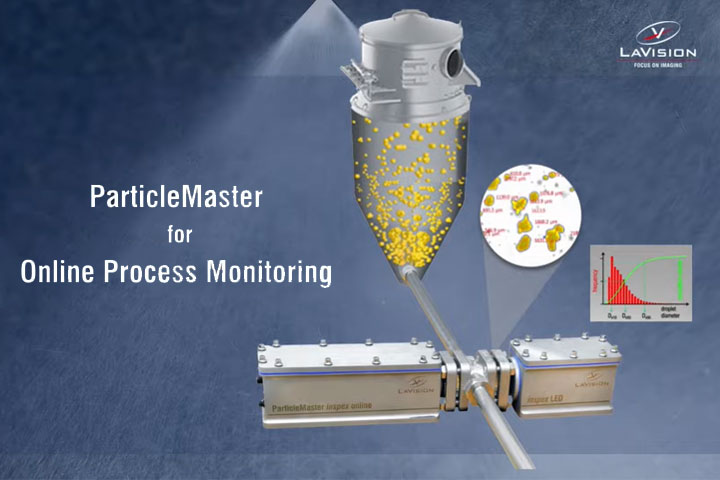

Product quality and process monitoring after a spray drying process
Measured Quantities
Size, shape, orientation, perimeter of individual particles and droplets
Velocity and mass flux from dual frame images
Cumulated statistics D10, D32, percentiles Dv10, Dv50, Dv90
Size histograms, scatterplots
