Fiber Cleaver-CAC400 Fiber Cleaver-CAC400A


Fiber Cleaver with Rotation Module for Angled Cleaves

Cleave Glass Fibers with Cladding Diameters from 80 μm to 1.25 mm
Accepts SM, PM, MM, Capillary Tubes, PCF, Non-Circular Fiber, and Other Specialty Fibers
Programmable Cleave Parameters via Included Controller


Cleave Fibers with Claddings from Ø80 µm to Ø1.25 mm

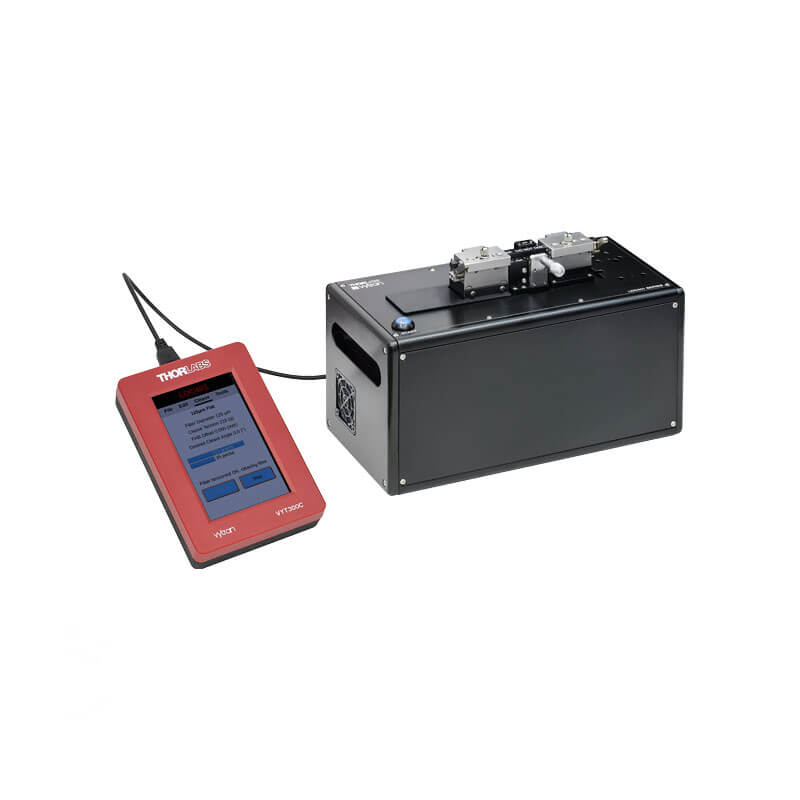

  • LDC401: Flat Cleaves Only

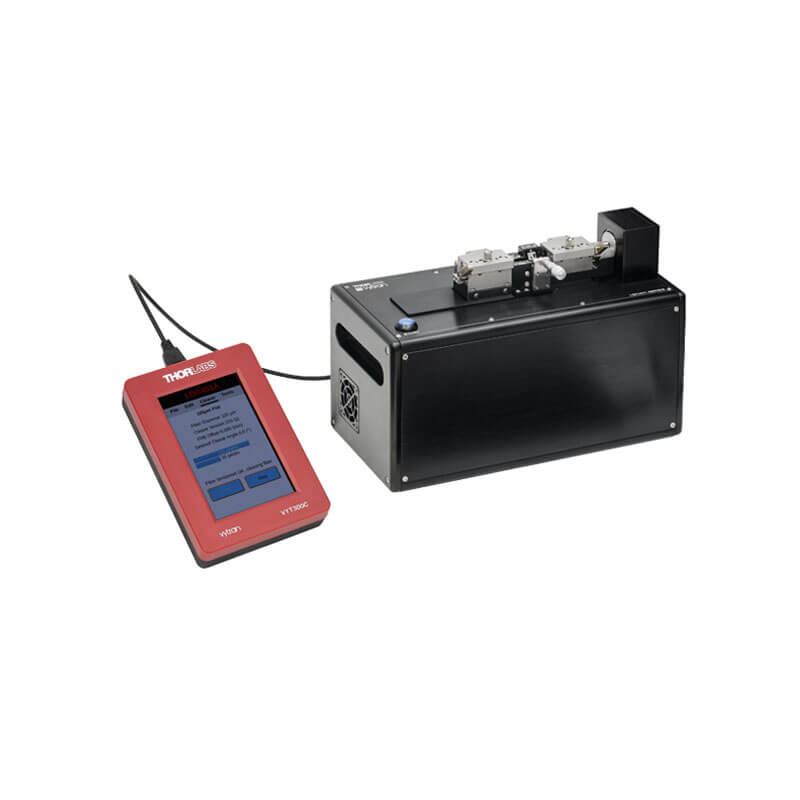

  • LDC401A: Flat Cleaves or Angled Cleaves up to 15°
Accepts SM, MM, PM, and Specialty Fibers
Includes Micrometer Backstop to Support Low-Tension Cleave Processes
Diamond Cleave Blade
Fiber Holder Inserts Must be Purchased Separately (Available Below)


Item LDC401 LDC401A
Cleave Angle Flat Cleave Flat Cleave or Angled (a) Cleave up to 15°
Accepted Fiber Sizes Cladding: Ø80 µm to Ø1.25 mm
Buffer: Ø80 µm to Ø3.198 mm
Accepted Fiber Types SM, PM, MM, Specialty Fibers Including Microstructured Fiber,
Photonic Crystal Fiber (PCF), Non-Circular Fiber, and Capillary Tubes
Cleave Method Tension and Scribe
Tension 63.7 N (14.3 lbs) Max, Programmable (b)
Scribe Diamond Blade, Stepper Motor Controlled
(5000 Uses, 9 Positions)
Loading Linear Tension, Stepper Motor Controlled
Cleave Tolerance ±0.5° ±0.5° (Flat)
±1.0° (Angled)
Rotation Stage N/A 0.1° Resolution,
Stepper Motor Controlled
Fiber Holding Blocks Internal Vacuum Pump for Easier Loading,
Up to 9 inHg (4.4 psi) of Pressure
Fiber Holder Inserts Available Separately Below
Power 12.5 VDC, 5 A (Provided by External Power Supply)
External Power Supply 100 - 120 / 200 - 240 VAC, 4.5 / 2.2 A, 47 - 63 Hz
Dimensions (L x W x H)
without Holding Blocks or Rotation Stage
10.14" x 5.30" x 5.15"
(257.4 mm x 134.6 mm x 130.7 mm)
Dimensions (L x W x H) 10.14 " x 5.30" x 6.82"
(257.4 mm x 134.6 mm x 173.3 mm)
10.14" x 5.30" x 6.96"
(257.4 mm x 134.6 mm x 176.8 mm)
Weight 10.0 lbs (4.5 kg)

(a) It may not be possible to create clean angled cleaves in specialty fibers with large "air-fill" fractions due to the structural properties of the fiber.

(b) These cleavers are calibrated using standard weights that are hung off of a pulley, so the tension settings are programmed into the tablet controller in grams. This maximum tension corresponds to 6.5 kg.
