Features
Low Amplitude Noise

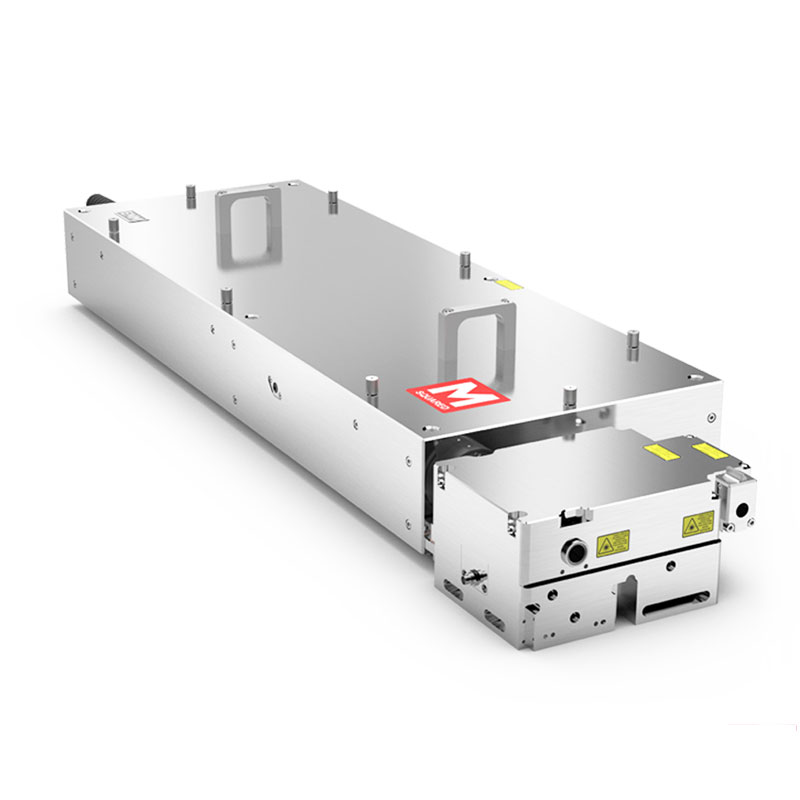

SolsTiS EMM is the natural successor to out-dated and hazardous dye laser technology, offering a completely automated and low noise alternative.
Long Term Power Stability
No power degradation over time.
Safe To Use
Solid-state solution for wavelength tuning in the visible – no toxic dyes.
Easy To Control
An easy to use web interface controls fine wavelength tuning (automatic tracking of fundamental frequency scans) and locking. Alternatively, you can use a published set of TCP/IP controls for third party applications such as LabVIEW and MATLAB.
Single Optics Set
No need to change optics (internal or external) – a single optics set for the Ti:Sapphire fundamental range.
Specifications
| SolsTiS EMM-532 | |
|---|---|
| Conversion Efficiency | > 1% of the product of the input powers |
| Example Specification | Input 1:2W @822 nm Sum frequency: > 100 mW @323 nm |
| Continuous Scan Range | > 25GHz |
| Tuning Range | |
| Optics | Input 1: 670-1050 nm Input 2: 532 nm |
| Sum Frequency | 300-350 nm |
| Crystals | ± 5 nm at centre of operation |
| Frequency And Intensity Noise | |
| Linewidth of Laser at 532 nm | DPSS: < 5 MHz |
| Intensity Noise of Laser at 532 nm 10 Hz-10 MHz |
DPSS: < 0.2% RMS |
| Model | Wavelength | Power |
|---|---|---|
| EMM-1550 | 500-540 nm 540–580 nm 580-600 nm |
> 0.5 W > 0.4 W > 0.2 W |
| EMM-1950 | 500-540 nm 520–580 nm 580-600 nm |
> 0.5 W > 0.4 W > 0.2 W |
Tuning Range
| Model | Optics | Crystals |
|---|---|---|
| EMM-1550 | 500-600 nm | 500-533 nm 527-565 nm 533-600 nm |
| EMM-1950 | 515-661 nm | 515-582 nm 582-661 nm |
| DFG-532 | 1100-2200 nm | 1100-1650 nm 1650-2200 nm |
| Scan Range | > 25 GHz | |
| Intensity Noise | < 0.25% RMS integrating over range, 10 Hz-10 MHz |
|
