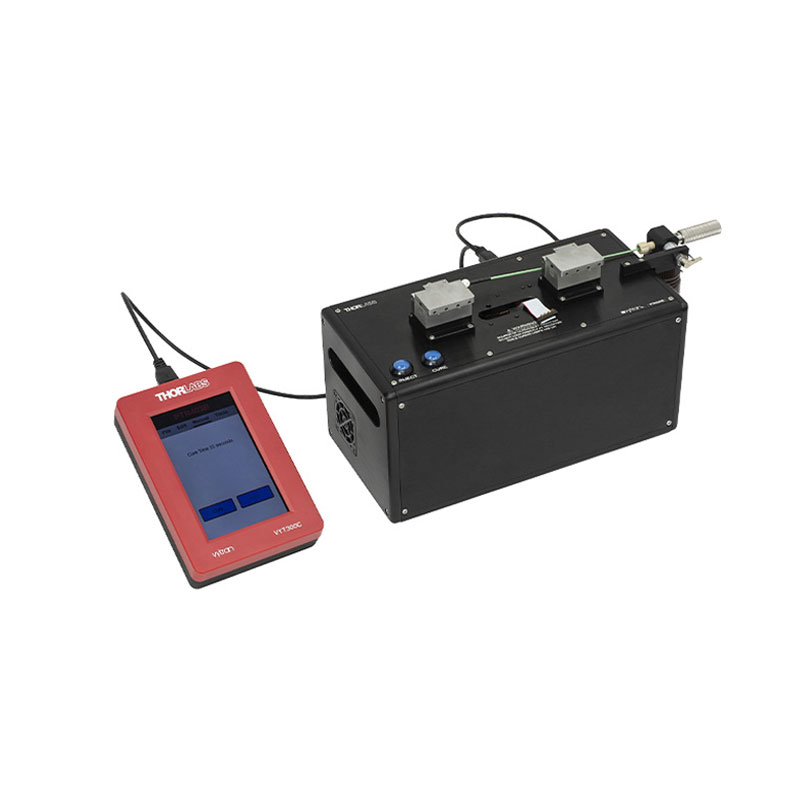

PTR403B
Manual Mold Assembly
Manual Recoat Injector
50 mm Max Fiber Recoat Length
Features
Compatible with Mold Assemblies for Coating Diameters of 280 µm, 430 µm, or 600 µm
50 mm or 100 mm Maximum Recoat Length
Ideal for Low-Volume Manufacturing and R&D
Compatible with High- and Low-Index Recoat Material
Specifications
| Fiber Recoaters with UV Curing LEDs | PTR403B |
|---|---|
| Recoater Type | Manual |
| Recoater Mold | Hinged Split Quartz Plates |
| Recoat Diameter (a) | 280 µm, 430 µm, or 600 µm(b) |
| UV Curing Source | 14 UV LEDs (Integrated in Mold Assembly) |
| Maximum Recoat Length | 50 mm |
| Recoat Material | High- or Low-Index UV Curable Acrylate |
| Recoat Injection | Manual |
| Recoat Volume | Manual |
| Recoat Injection Rate | Manual |
| Cure Time (c) | 15 s (Typical) |
| Mold Cleaning Requirement (d) | After Every Recoat |
| Total Cycle Time | 60 s (Typical) |
| Dimensions (L x W x H) | 10.14" × 5.30" × 6.88" (e) (257.6 mm × 134.6 mm × 174.8 mm) |
| AC Power | 100 - 240 VAC, 47 - 63 Hz |
(a) Custom sizes available.
(b) Depends on the Mold Assembly.
(c) Programmable via Controller; Mold Size and Recoat Material Dependent.
(d) The mold should be cleaned with either acetone or isopropyl alcohol, applied with a cotton swab. If the mold has an accumulation of cured material stuck on the plates, allow the cleaning solution (preferably acetone) about 60 - 90 seconds to soften and lift the material from the surface.
(e) With required mold assembly (sold separately) installed.
