APL-HP-series
High Intensity Systems

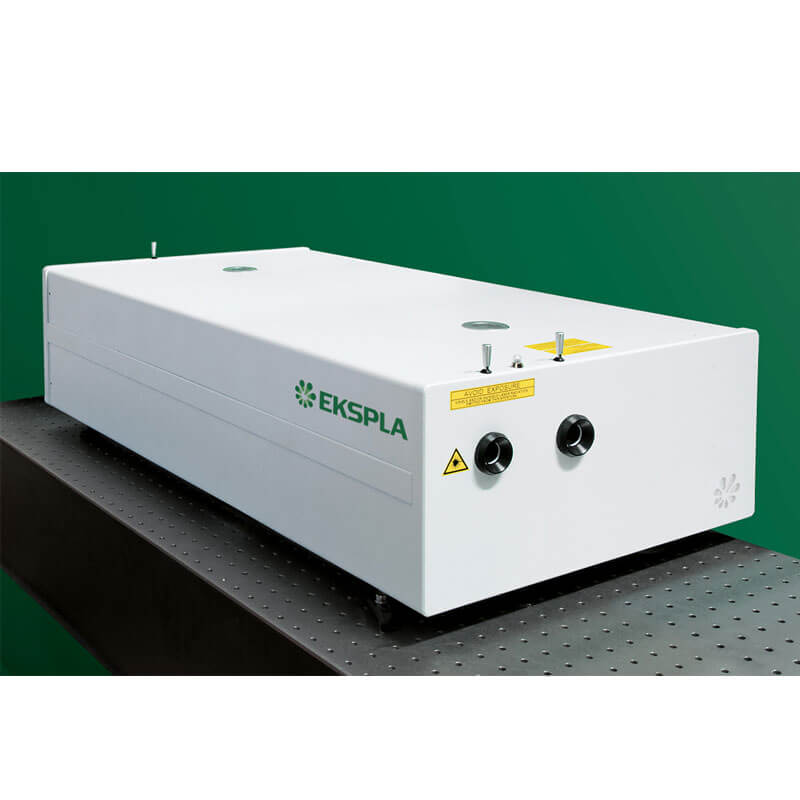

APL HP series

High Repetition Rate Diode Pumped Picosecond Amplifiers

Pulse energies up to 150 mJ
20 - 300 ps pulse duration
Up to 2 kHz pulse repetition rate
Diode pumped solid state design picosecond amplifiers

Features

Diode pumped picosecond amplifiers
Pulse energies up to 150 mJ
20 - 300 ps pulse duration
High pulse energy up to 2 kHz pulse repetition rate
Diode pumped solid state design
Advanced beam shaping for high pulse energy
Internal or external seeding source
Thermally induced birefringence compensated
Low maintenance costs
Less than 10 ps RMS jitter synchronization pulses for streak camera triggering
Control through USB and LAN interfaces with supplied Windows control software (RS232 optional)
Vacuum image relay system
Optional temperature stabilized second, third and fourth harmonic generators
Optional extremely precise synchronization to external RF signal with PLL option
Optional Gaussian like spatial beam profile with Gaussian fit > 85 % in near field
Optional reduced pulse duration to 20 ps

Applications

Time resolved spectroscopy
SFG/SHG spectroscopy
Nonlinear spectroscopy
OPCPA pumping
OPG/OPA pumping
Remote laser sensing
Satellite ranging
Other spectroscopic and nonlinear optics applications...
