Features
Compact: only 1/10 of the size of Ti:Sapphire lasers
Laser Output in less than 60 seconds after turn-on
Laser Output in less than 60 seconds after turn-on
Adjustable Chirp Control (-60000 ...0 fs2)
Modulation Input (enable/disable): Fast Amplitude Modulation, rise time < 1µs
Radio Frequency Output for Trigger/Synchronization: SMA Connector
Excellent Beam Quality (TEM 00, M2 < 1.2) and Beam Stability
Air Cooled - no Chiller
Low Power Consumption
Quality "Made in Germany"
Applications
Neuroscience
Medical microsurgery
Ultrafast Spectroscopy
Specifications

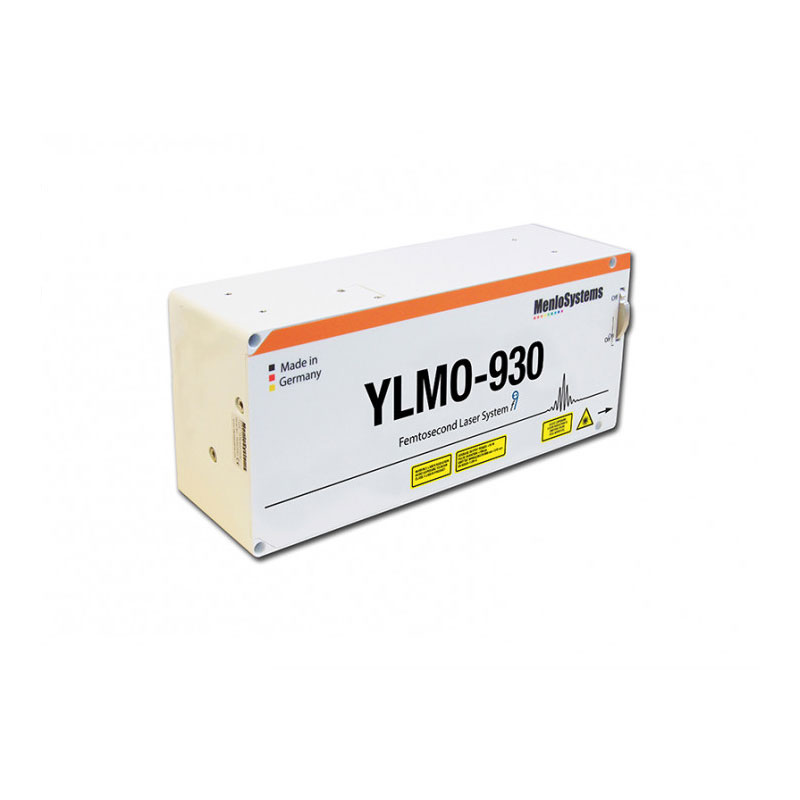

| Item | YLMO-930 |
|---|---|
| Central Wavelength | 930 nm ±10 nm |
| Average Power | > 0.5 W |
| Pulse Energy | > 10 nJ |
| Pulse Width | < 140 fs (typ. < 120 fs) |
| Repetition Rate * | 50 MHz ±1 MHz * |
| Output Port | freespace |
| Polarization | linear, (>50:1) |
| Beam Diameter | 2 mm ±0.5 mm |
| Beam Height | 56 mm |
* Other repetition rates on request.
