Industrial Ultrafast Laser

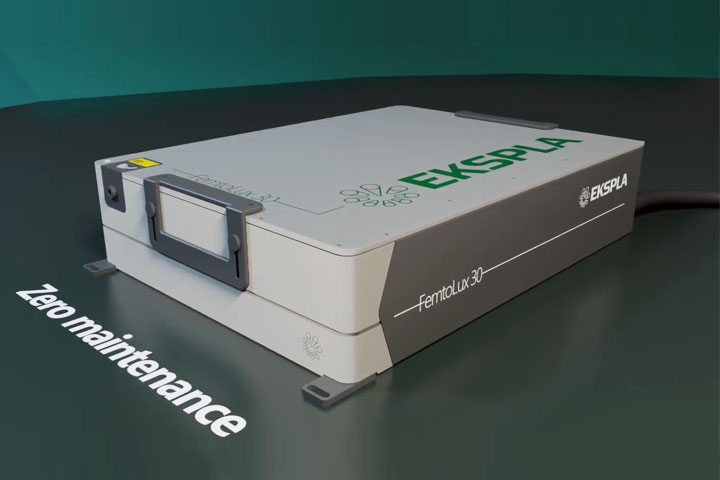

FemtoLux 30
Industrial Femtosecond Laser
30 W at 1030 nm, 11 W at 515 nm
>90 µJ at 1030 nm, >50 µJ at 515 nm
Single shot to 4 MHz (AOM controlled)
Zero maintenance required
Dry cooling (no water used)
Features
Typical max output power 30 W at 1030 nm, 11 W at 515 nm
Max pulse energy >90 µJ at 1030 nm, >50 µJ at 515 nm
> 250 µJ in a burst mode
< 350 fs – 1 ps
Single shot to 4 MHz (AOM controlled)
<0.5% RMS power long term stability over 100 hours
M² < 1.2
Beam circularity > 0.85
Zero maintenance
Zero maintenance
PSU and cooling unit integrated into single 4U rack housing
Easy and quick installation
Compatible with galvo and Polygon scanners as well as PSO controllers
2 years of total warranty
Applications
LCD, LED, OLED drilling, cutting and repair
Microelectronics manufacturing)
Glass, sapphire and ceramics micro processing
Glass intra volume structuring
Micro processing of different polymers and metals
Specifications
| Model | FemtoLux 30 |
|---|---|
| Main Specifications | |
| Wavelength | 1030 nm |
| Pulse Repetition Rate (PRR) | 200 kHz – 4 MHz |
| Maximal average output power | PRF = PRR / N, N=1, 2, 3, … , 65000; single shot |
| Maximal pulse energy | > 27 W (typical 30 W) |
| Maximal total energy in a burst mode | > 90 µJ |
| Power long term stability (Std. dev.) | > 250 µJ |
| Pulse energy stability (Std. dev.) | < 0.5 % |
| Pulse duration (FWHM) | < 1 % |
| Beam quality | M2 < 1.2 (typical < 1.1) |
| Beam circularity, far field | > 0.85 |
| Beam divergence (full angle) | < 1 mrad |
| Beam pointing thermal stability | < 20 µrad/°C |
| Triggering mode | internal / external |
| Pulse output control | frequency divider, pulse picker, burst mode, packet triggering, power attenuation |
| Control interfaces | USB / RS232 / LAN |
| Length of the umbilical cord | 3 m, detachable |
| Laser head cooling type | dry (direct refrigerant cooling through detachable cooling plate) |
| Physical Characteristics | |
| Laser head (W × L × H) | 429 × 569 × 130 mm |
| Power supply unit (W × L × H) | 449 × 376 × 177 mm |
| Operating Rrquirements | |
| Mains requirements | 100~240 V AC, single phase, 50/60 Hz |
| Operating ambient temperature | 18~27 °C |
| Relative humidity | 10~80 % (non-condensing) |
| Air contamination level | ISO 9 (room air) or better |
*Due to continuous improvement, all specifications are subject to change without notice.
