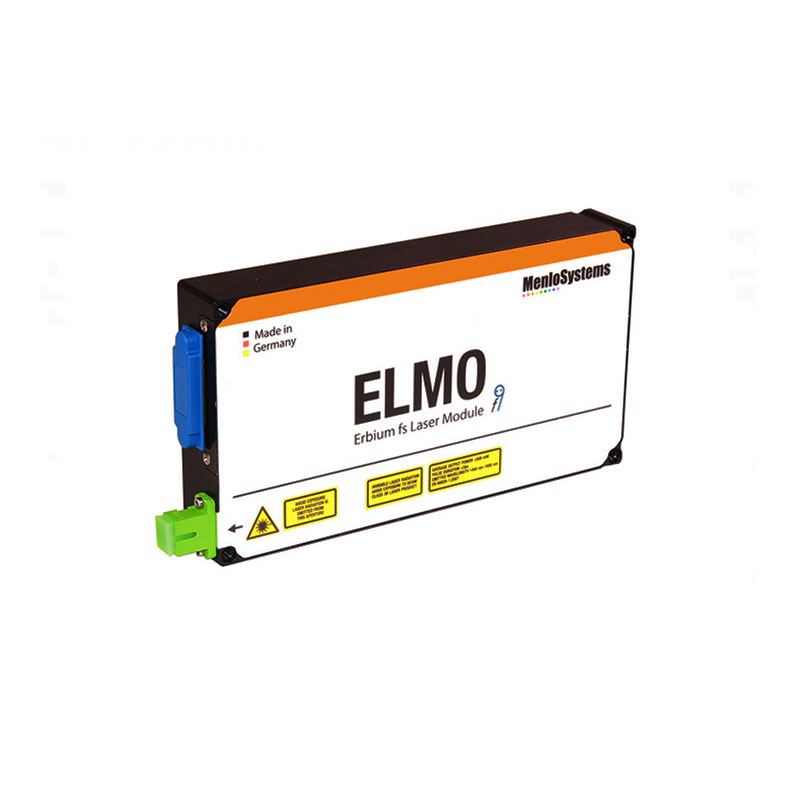

ELMO

Femtosecond Erbium Laser
Ultrafast OEM Laser for Terahertz Generation

Wavelength: 780 nm, 1560 nm
Average Power: >330 mW
Pulse Duration: <150 fs
Repetition Rate: 100 MHz

Smallest footprint on the market optimized for OEM integration

INQUIRE CATALOG

Features

High Stability

Low Amplitude and Phase Noise

All-PM Solution

Single Mode-Lock State

Menlo figure 9® Technology, Laser Output in Less than 60 Seconds

Repetition Rate 50-100 MHz

Smallest Footprint, No additional laser driver required

Pulse Width down to 45 fs

Applications

Amplifier seeding

Terahertz generation & terahertz physics

Ultrafast Spectroscopy

Specifications

Item	ELMO	ELMO High Power	ELMO High Power-FS
Central Wavelength	1560 nm ±10 nm	1560 nm ±10 nm	1560 nm ±10 nm
Average Power	> 10 mW	> 180 mW	> 330 mW
Pulse Width	< 150 fs (typ. 100 fs)	< 60 fs (typ. 45 fs)	< 90 fs (typ. 70 fs)
Output Port	fiber-coupled	fiber-coupled	free space
Polarization	linear, PM Fiber	linear, PM Fiber
Dispersion Management *	dispersion can be factory set to achieve short pulsesb after 0.5-30m of external fiber		external patch cord length of 0.5m to external compressor module **
Repetition Rate *	100 MHz (50-100 MHz with Vario) *
2nd Fiber-Coupled Seed Port		yes	yes
2nd High Power Output Port	available with MULTIBRANCH

* Please inquire for your specific combinations of average power, pulse duration, repetition rate, and external fiber length.

** Free space version with additional compressor module, versatile handheld compressor : module can also be mounted in s-polarized orientation. Standard external patch cord length 0.5m.
